NEW QUESTION # 439
When a floating static route is configured, which action ensures that the backup route is used when the primary route fails?

• A. The floating static route must have a higher administrative distance that the primary route so it is used as a backup
• B. The default-information originate command must be configured for the route to be installed into the routing table.
• C. The administrative distance must be higher on the primary route so that the backup route becomes secondary.
• D. The floating static route must have a lower administrative distance that the primary route so it is used as a backup.

Answer: A

Explanation:
Section: IP Connectivity
Explanation

NEW QUESTION # 440
Drag and drop the descriptions of file-transfer protocols from the left onto the correct protocols on the right.

Answer:

Explanation:

NEW QUESTION # 441
Refer to the exhibit.

An engineer must configure GigabitEthernet1/1 to accommodate voice and data traffic Which configuration accomplishes this task?

• A. Option D
• B. Option A
• C. Option B
• D. Option C

Answer: B

NEW QUESTION # 442

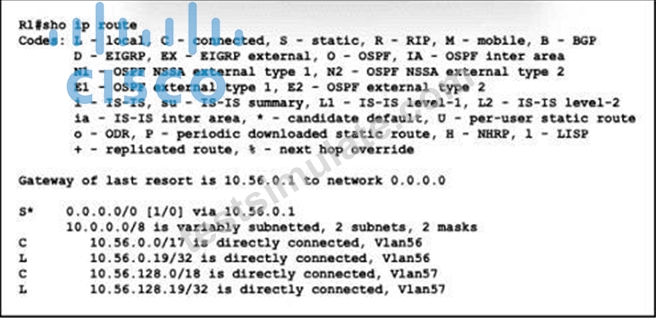

Refer to the exhibit.

When router R1 is sending traffic to IP address 10.56.192 1, which interface or next hop address does it use to route the packet?

• A. 10.56.128.19
• B. 0.0.0.0.0/0
• C. Vlan57
• D. 10.56.0.1

Answer: D

NEW QUESTION # 443
A frame that enters a switch fails the Frame Check Sequence. Which two interface counters are incremented? (Choose two)

• A. runts
• B. CRC
• C. giants
• D. input errors
• E. frame

Answer: B,D

Explanation:
Whenever the physical transmission has problems, the receiving device might receive a frame whose bits have changed values. These frames do not pass the error detection logic as implemented in the FCS field in the Ethernet trailer. The receiving device discards the frame and counts it as some kind of input error.
Cisco switches list this error as a CRC error. Cyclic redundancy check (CRC) is a term related to how the FCS math detects an error.
The "input errors" includes runts, giants, no buffer, CRC, frame, overrun, and ignored counts.
The output below show the interface counters with the "show interface s0/0/0" command:

NEW QUESTION # 444
Refer to the exhibit.

How does the router manage traffic to 192.168.12.16?

• A. It chooses the OSPF route because it has the longest prefix inclusive of the destination address.
• B. it load-balances traffic between all three routes
• C. It selects the RIP route because it has the longest prefix inclusive of the destination address.
• D. It chooses the EIGRP route because it has the lowest administrative distance

Answer: C

NEW QUESTION # 445
Which two minimum parameters must be configured on an active interface to enable OSPFV2 to operate?
(Choose two.)

• A. OSPF area
• B. OSPF MD5 authentication key
• C. OSPF process ID
• D. OSPF stub flag
• E. IPv6 address

Answer: A,C

Explanation:
Section: IP Connectivity

NEW QUESTION # 446

Refer to the exhibit. How does router R1 handle traffic to 192.168.10.16?

• A. It selects the RIP route because it has the longest prefix inclusive of the destination address.
• B. It selects the EIGRP route because it has the lowest administrative distance.
• C. It selects the IS-IS route because it has the shortest prefix inclusive of the destination address.
• D. It selects the OSPF route because it has the lowest cost.

Answer: B

NEW QUESTION # 447
Refer to the exhibit.

An engineer is required to verify that the network parameters are valid for the users wireless LAN connectivity on a /24 subnet. Drag and drop the values from the left onto the network parameters on the right. Not all values are used.

Answer:

Explanation:

NEW QUESTION # 448
Refer to the exhibit. After the election process what is the root bridge in the HQ LAN?
Switch 1: 0C:E0:38:81:32:58
Switch 2: 0C:0E:15:22:1A:61
Switch 3: 0C:0E:15:1D:3C:9A
Switch 4: 0C:E0:19:A1:4D:16

• A. Switch 1
• B. Switch 2
• C. Switch 3
• D. Switch 4

Answer: C

Explanation:
The root bridge is determined by the lowest bridge ID, which consists of the priority value and the MAC address. Because the priority values of all of the switches are not avalable, the MAC address is used to determine the root bridge. Because S3 has the lowest MAC address, S3 becomes the root bridge.

NEW QUESTION # 449
Refer to exhibit.

Which statement explains the configuration error message that is received?

• A. The router does not support /28 mask.
• B. It belongs to a private IP address range.
• C. IT is a network IP address.
• D. It is a broadcast IP address

Answer: D

NEW QUESTION # 450
Refer to the exhibit.

An administrator must turn off the Cisco Discovery Protocol on the port configured with address last usable address in the 10.0.0.0/30 subnet. Which command set meets the requirement?

• A. interface gi0/1
  clear cdp table
• B. interface gi0/1
  no cdp enable
• C. interface gi0/0
  no cdp run
• D. interface gi0/0
  no cdp advertise-v2

Answer: C

NEW QUESTION # 451
Drag drop the descriptions from the left onto the correct configuration-management technologies on the right.

Answer:

Explanation:

Explanation:

The focus of Ansible is to be streamlined and fast, and to require no node agent installation.
Thus, Ansible performs all functions over SSH. Ansible is built on Python, in contrast to the Ruby foundation of Puppet and Chef.
TCP port 10002 is the command port. It may be configured in the Chef Push Jobs configuration file .
This port allows Chef Push Jobs clients to communicate with the Chef Push Jobs server.
Puppet is an open-source configuration management solution, which is built with Ruby and offers custom Domain Specific Language (DSL) and Embedded Ruby (ERB) templates to create custom Puppet language files, offering a declarative-paradigm programming approach.
A Puppet piece of code is called a manifest, and is a file with .pp extension.

NEW QUESTION # 452
An engineer observes high usage on the 2.4GHz channels and lower usage on the 5GHz channels. What must be configured to allow clients to preferentially use 5GHz access points?

• A. Re-Anchor Roamed Clients
• B. OEAP Spilt Tunnel
• C. 11ac MU-MIMO
• D. Client Band Select

Answer: D

Explanation:
Section: Network Fundamentals

NEW QUESTION # 453
What uses HTTP messages to transfer data to applications residing on different hosts?

• A. OpenFlow
• B. REST
• C. OpFlex
• D. OpenStack

Answer: B

NEW QUESTION # 454
Refer to the exhibit.

The default-information originate command is configured under the R1 OSPF configuration After testing workstations on VLAN 20 at Site B cannot reach a DNS server on the Internet Which action corrects the configuration issue?

• A. Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.2 command on R2
• B. Add the default-information originate command onR2
• C. Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.18 command on R1
• D. Add the always keyword to the default-information originate command on R1

Answer: C

NEW QUESTION # 455
Refer to the exhibit.

Which switch becomes the root of a spanning tree for VLAN 20 if all li links are of equal speed?

• A. SW2
• B. SW4
• C. SW3
• D. SW1

Answer: C

NEW QUESTION # 456
Drag and drop the characteristics of network architectures from the left onto the type of architecture on the right.

Answer:

Explanation:

NEW QUESTION # 457
......
